IP66 Outdoor SIP Horn Speaker 30W POE Powered ABS Cabinet

Brand Name : FTD

Model Number : FIP-930SIP

Certification : CE

Place of Origin : CHINA

MOQ : 10

Price : Negotiable

Payment Terms : T/T

Supply Ability : 500PCS Per Month

Delivery Time : 10-15 work days

Packaging Details : Carton

Size : 285*205(H)mm

Color : White

Power : 30 Watts

Material : ABS cabinet

Frequency Response : 100-18KHz（±3dB）

S/N Ratio : ≧85dB

Contact Now

Outdoor SIP IP66 Horn Speaker 30W POE Powered

Product Description

Product Name	SIP IP Horn Speaker
Material	ABS cabinet, Iron wall mount bracket
Package	Carton

Product performance description

The IP horn Speaker is the latest in IP technology. It is based on SIP protocol, it support to work with any standard SIP software like SIP telephone software

The SIP IP speaker enable to be built up an IP based sound system through a single CAT5 or CAT6 wire. The single CAT5 cable is used for control data, signal data and even power supply, by this way, the layout cost will be much decreased

without any consideration of AC nor DC power supply.

The IP horn speaker is designed with 6” full range speaker with 15W class-D amplifier
There is one contact input to connect with other third fire alarm system, once the trigger is active, it will broadcast any pre set message to any IP device.

IP66 Outdoor SIP Horn Speaker 30W POE Powered ABS Cabinet

Features

With an integration of the network audio decoding and digital amplifier and speakers and a installation of wall-mounted design;
With a built-in hi-fi speakers and stereo Class-D power amplifiers(15 watts (8Ω)
Supportive of POE power supply and SIP protocol, with the function of adjusting speaker output volume remotely on server;
With a high-speed dual-core (ARM + DSP) chip of industrial grade; start time≤1 s
With a standard RJ45 interface supportive of crossing network segment and router, accessible to the system if the Ethernet is available;

Specification

Model	FIP-930SIP
Description	IP Based Horn Speaker
Power Output	15W/8Ω
NETWORK CHIP RATE	10/100Mbps
MAXIMUM SPL	97dB±3dB
SENSITIVITY	88dB±3dB /W/M
NETWORK PROTOCOL	TCP/IP,UDP,ARP,ICMP,IGMP,SIP
AUDIO CODE	MP2/MP3/PCM/ADPCM/G.711/G.722
AUDIO SAMPLING & BIT RATE	8kHz～44.1kHz, 16bit, 8kbps-320kbps
S/N	≥90dB, 100-18KHz
NETWORK DELAY	Broadcast delay≤30ms
WORKING TEMP& HUMIDITY	-20℃～50℃,10%-90%RH(Not condensing)

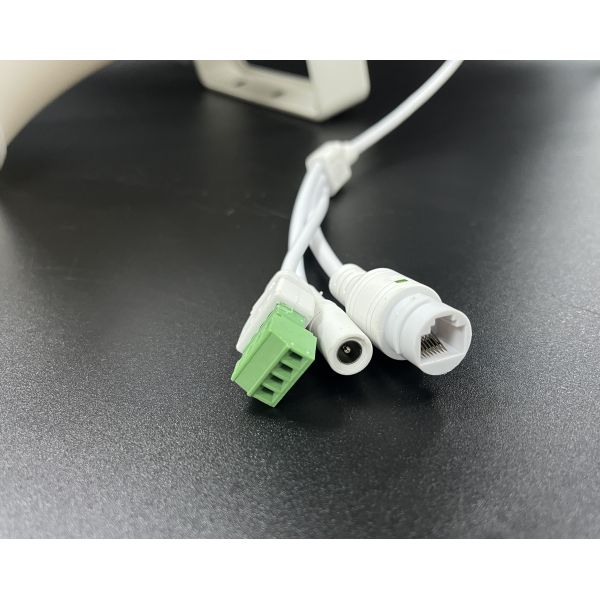

Connector	One RJ45 port for existing LAN/WAN & internet One closed contact input for emergency button, 0V, short circuit contact One closed contact output for emergency light, 0V, short circuit contact
Power Input	DC 12V
Operation Temp	-30 to 55℃
Dimension	285×285mm X 210mm
Weight	1.8kg

Certifications&Exhibition

Company Introduction

Guangzhou FTD Audio Limited is a leading manufacturer of Public Address System and Conference System in China, We are focus on R&D and our Professional R&D team already 15 years' experience on Audio field. FTD audio will offer the professional products and service to each of partner and do a win win business with our partners!

IP66 Outdoor SIP Horn Speaker 30W POE Powered ABS Cabinet

Our Services & Strength

1.One year warranty after sales. if any problem happened under warranty , you can return to us and fix it.

2.Accept OEM and ODM order for our customers.

3. Stable quality with good quality control, quality is our life.

4. 7*24 hours quick response for technology support.

5. Various PA system product for one shop purchase.

6. System solution designed can be offered base on requirement.

7. Reasonable price for a win win business .
